The Global Traffic Director gives clients the ability to geographically respond to queries differently based on region.
GTD is useful if you have multiple different servers located around the world and you want to direct your traffic to the closest server. For example, you can want traffic for Mondaydemo1.com going to 220.127.116.11 in the US EAST region the rest of the world to resolve 18.104.22.168. East coast US querying clients are sent to 22.214.171.124 while the rest of the US and other worldwide querying clients are sent to 126.96.36.199. This is what we will configure below for mondaydemo1.com.
Step 1: Select Managed DNS
- To start, you must enable GTD for the domain, Select the DNS Menu and Managed DNS.
Step 2: Select a domain
- Select a domain from the either the Recently Updated Domains box, or start typing the domain name in the text box on the Select Domain tab.
Step 3: Settings
Step 4: Enabling GTD
- Click the Global Traffic Director checkbox, Click Save.
Step 5: Select Records tab
- Now you can begin to define region-specific records within your domain, select the Records tab.
Step 6: Add A Record
- Click the plus sign (+) under a record type to add a new GTD region-specific record. We will add an A record for mondaydemo1.com that points to a web server at 188.8.131.52 in US EAST. Click Submit.

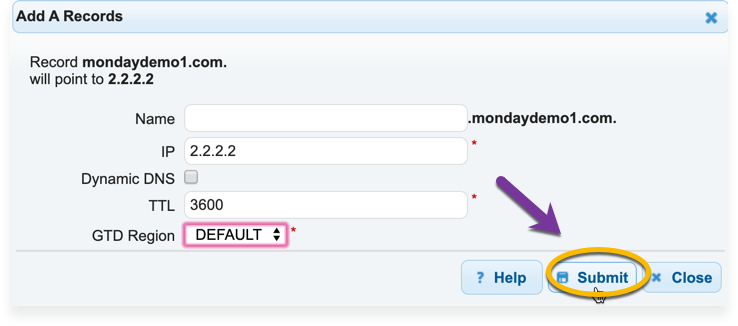

Step 7: Default record
- Now we will define a DEFAULT record for Add a new record for example.com that points to a web server at 184.108.40.206.
- Click Submit. Now all traffic will be sent to 220.127.116.11 while traffic from US EAST will get to 18.104.22.168.
IMPORTANT: If you do not define a record for each of the 5 regions, you MUST define a DEFAULT record. Otherwise, traffic for any undefined region will not be answered.
